Dye Penetration Testing
Dye penetration testing is a critical quality control method used to evaluate the integrity of sterile barrier systems in medical device packaging. This test is particularly suitable for pouch packaging, blister packs, thermoformed trays, and flexible or rigid sterile barrier systems that rely on heat seals or adhesive bonds to maintain sterility. The primary purpose of dye penetration testing is to identify micro-leaks, weak seals, or defects that could compromise the sterility of medical devices during storage, transportation, or handling. Given the stringent regulatory requirements for medical device packaging, this test is essential for product development, validation, and regulatory submissions (e.g., FDA 510(k), CE Marking, ISO 11607 compliance). By detecting seal imperfections early, manufacturers can prevent costly recalls, ensure patient safety, and accelerate time-to-market for their medical devices.
Our Service

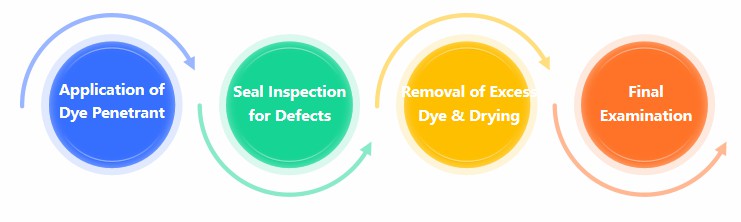

At Meditronics (a brand of STEMart), we perform dye penetration testing in strict accordance with ASTM F1929 and ASTM F3039, ensuring reliable and reproducible results. Our testing process follows a systematic approach to guarantee accuracy:
1. Application of Dye Penetrant
The test begins by applying a visible or fluorescent dye solution to the sample. Depending on the test method, this can be done using a syringe, eye dropper, or by fully immersing the external seal to ensure complete coverage.
2. Seal Inspection for Defects
The operator carefully distributes the dye along the seal while visually examining it for immediate leaks or inconsistencies. Each seal is inspected for no more than 5 seconds to maintain testing consistency, and this step is repeated for all seals in the sample batch.
3. Removal of Excess Dye & Drying
After application, any residual dye is thoroughly removed, and the component is dried to prepare for final evaluation.
4. Final Examination Under UV/White Light
The sample is then inspected under ultraviolet (UV) or white light, depending on the dye type used. Any breaches in the seal will appear as visible traces of dye penetration, which are documented in detail for compliance reporting.
Why Choose Meditronics?
Meditronics's dye penetration testing services provide medical device manufacturers with data-driven insights to optimize packaging design, validate seal integrity, and meet global regulatory standards. By identifying micro-leaks, channel defects, or incomplete seals, our testing helps manufacturers:
✔ Mitigate sterility risks that could lead to product contamination and patient harm.
✔ Reduce packaging failure rates during distribution, minimizing costly post-market issues.
✔ Streamline regulatory approvals by providing compliant test reports for FDA, EU MDR, and ISO 11607 submissions.
✔ Improve manufacturing processes by detecting weak points in sealing parameters (e.g., temperature, pressure, or dwell time).
With state-of-the-art testing facilities and expertise in medical device packaging validation, Meditronics delivers fast, accurate, and audit-ready results to support your product lifecycle—from R&D to commercialization.
For more information on how our dye penetration testing services can enhance your packaging quality, contact our team today.
