Vacuum Decay Testing
Vacuum decay testing represents one of the most advanced and reliable methods for evaluating the integrity of medical device packaging systems. This non-destructive test is suitable for rigid, semi-rigid, and flexible packaging constructed from both non-porous and porous materials, including thermoformed trays, blister packs, pouches, and hybrid container systems. This method offers distinct advantages over traditional leak testing approaches, including:
- Superior sensitivity capable of detecting micron-level leaks
- Non-destructive nature allowing for package retention after testing
- Quantitative results providing objective pass/fail determinations
The primary purpose of vacuum decay testing is to identify and quantify leaks in sterile barrier systems, ensuring they maintain protection throughout distribution and shelf life. For regulatory compliance, this test provides critical validation data required by FDA, EU MDR, and ISO 11607 standards, serving as essential evidence for 510(k) submissions and other regulatory approvals. By implementing vacuum decay testing, manufacturers can:
- Verify package design adequacy
- Validate manufacturing process consistency
- Mitigate sterility breach risks
- Accelerate time-to-market
Our Service

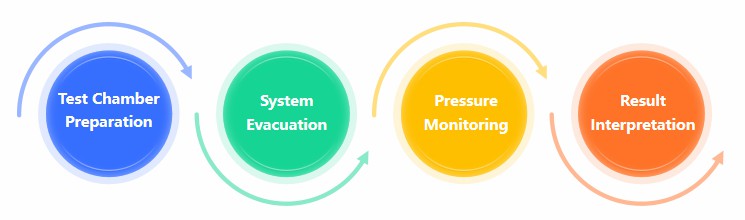

Meditronics (a brand of STEMart) performs vacuum decay testing in strict accordance with ASTM F2338, employing a precisely controlled methodology:
1. Test Chamber Preparation
Sample packages are securely placed in a custom-designed evacuation test chamber which features an airtight seal and connection to an external vacuum source.
2. System Evacuation
The chamber and test system dead space undergo controlled evacuation. Evacuation duration is optimized for package configuration.
3. Pressure Monitoring
High-precision differential pressure transducers continuously track vacuum levels. Data acquisition systems record pressure changes with millisecond resolution.
4. Result Interpretation
Any pressure increase exceeding established thresholds indicates leakage. Leak rates are quantified for severity assessment.
Why Choose Meditronics?
Meditronics delivers unparalleled vacuum decay testing capabilities through:
✔ Expert Protocol Development
- Customized test parameters for each package type
- Scientifically validated sensitivity thresholds
- Material-specific testing approaches
✔ Advanced Testing Infrastructure
- State-of-the-art test chambers with precision controls
- High-sensitivity pressure measurement systems
- Automated data acquisition and analysis
✔ Reliable, Regulatory-Ready Results
- Quantitative leak detection with micron-level sensitivity
- Comprehensive test reports suitable for regulatory submissions
- Fast turnaround without compromising accuracy
Our testing services help manufacturers:
- Identify critical leaks before product distribution
- Optimize packaging designs through iterative testing
- Ensure compliance with global regulatory requirements
- Reduce quality risks throughout product lifecycle
For a consultation on how our vcuum dcay tsting can enhance your packaging validation program, contact our testing specialists today.
