Ingress Protection (IP) Testing
Ingress protection (IP) ratings, defined by the International Electrotechnical Commission (IEC) standard 60529, classify the degree of protection provided by an enclosure against the intrusion of solid particles (dust) and liquids (water). The IP code consists of two digits—the first indicates resistance to solids, while the second denotes resistance to liquids.
For medical devices, IP testing is critical to ensuring safety, reliability, and regulatory compliance.
- Patient Protection: Medical devices used in hospitals, clinics, or homecare settings must resist contaminants to prevent malfunctions that could endanger patients.
- Durability in Harsh Environments: Devices used in operating rooms, ambulances, or sterilization areas must endure frequent cleaning, liquid spills, and airborne particles.
- Regulatory Compliance: Manufacturers must validate IP ratings to meet global market requirements, ensuring smooth approvals and avoiding costly recalls.
Our Service
Meditronics (a brand of STEMart) provides comprehensive ingress protection testing in accordance with IEC 60529, covering both dust (solid particle) and liquid ingress testing. Our testing process ensures that medical devices meet the required protection levels for their intended use. Our testing covers:
Dust Testing (IP5X/IP6X – Solid Particle Protection)
Devices are placed in a controlled dust chamber to evaluate its resistance to solid particles, ranging from large objects (IP1X-IP3X) to dust (IP5X-IP6X).
Liquids Testing (IPX1 to IPX9K – Water & Chemical Resistance)
- IPX1/IPX2 (Dripping Water): Simulates light rain or condensation.

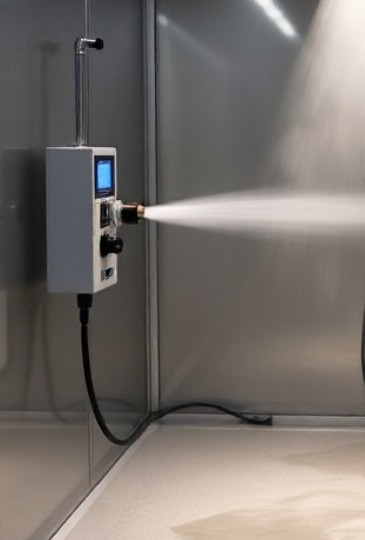

- IPX3/IPX4 (Spray & Splash Resistance): Devices are sprayed from multiple angles to mimic splashes.
- IPX5/IPX6 (Water Jet Resistance): High-pressure water jets (12.5mm or 6.3mm nozzles) test resistance to harsh cleaning or rain.
- IPX7/IPX8 (Submersion): Devices are submerged in 1m (IPX7) or deeper (IPX8) water for 30+ minutes.
- IPX9K (High-Temperature/High-Pressure Washdown): Evaluates resistance to 80°C water at 80-100 bar (common in sterilization processes).
Why Choose Meditronics?
Meditronics stands out as a trusted partner for medical device manufacturers due to our:
✔ Expertise in Regulatory Standards
Our team has in-depth knowledge of IEC 60529, ISO 60601-1, and FDA/MDR requirements, ensuring your medical device meets global compliance standards.
✔ Advanced Testing Facilities
We utilize state-of-the-art dust chambers, water spray nozzles, and immersion tanks to simulate real-world conditions accurately.
✔ Accurate and Reliable Results
With precise testing methodologies and certified equipment, we deliver unbiased, repeatable results that manufacturers can trust for regulatory submissions.
✔ Customized Testing Solutions
We tailor our testing protocols based on device type, usage environment, and market requirements, helping clients achieve optimal protection levels efficiently.
✔ Fast Turnaround & Global Market Suppor
Meditronics provides expedited testing services and assists manufacturers in obtaining necessary certifications for U.S., EU, and other international markets.
IP testing is essential for ensuring medical devices remain safe, functional, and compliant in demanding environments. Meditronics's expertise, advanced testing capabilities, and regulatory knowledge provide manufacturers with confidence in their device's durability.
For more information on our IP testing services, contact Meditronics today.
